Rack and Pinion Chevy Trailblazer GMC Envoy 2002-2007 2009

Details

Brand

PHOBOOS

Part number

PBPSR067

Condition

New, open box

Item number

1852

Description

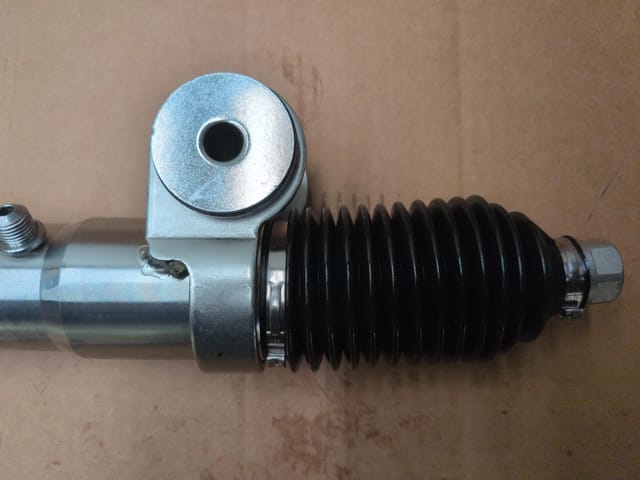

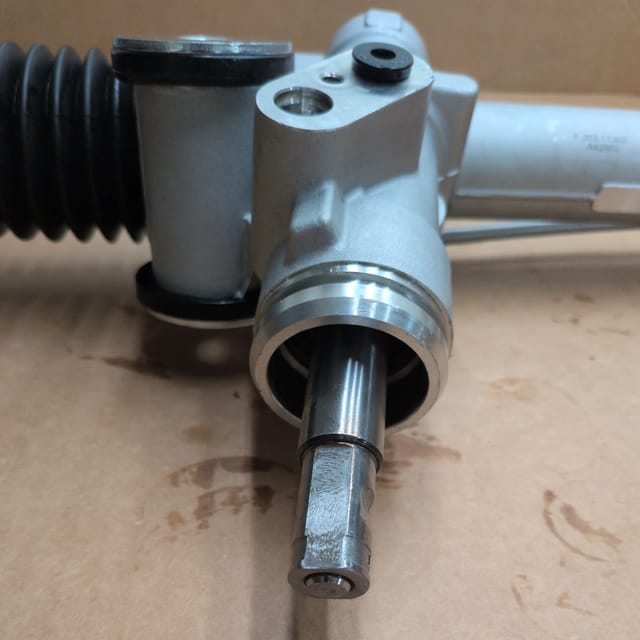

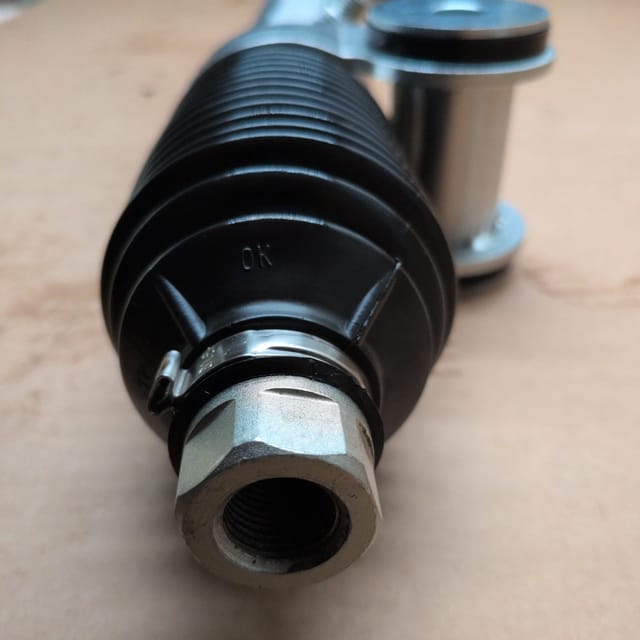

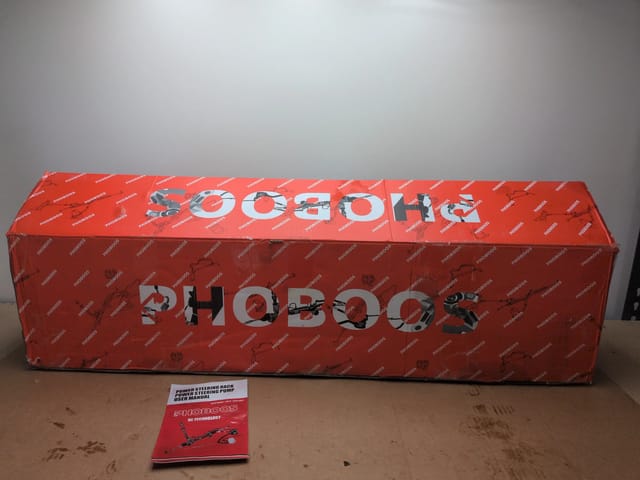

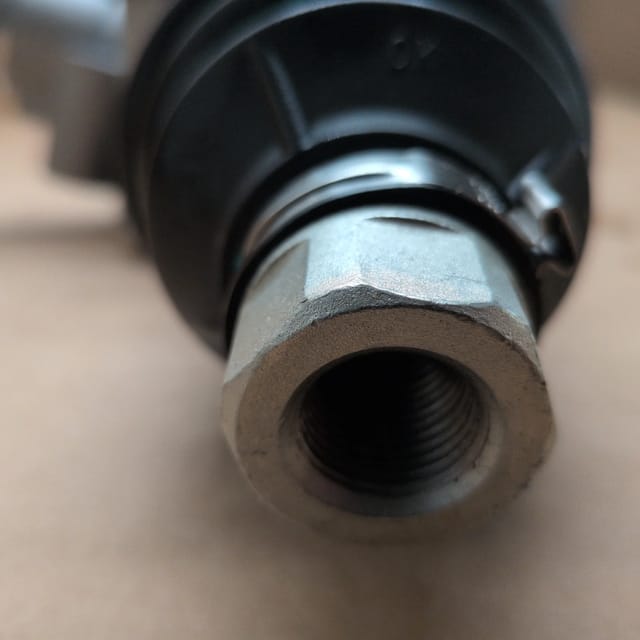

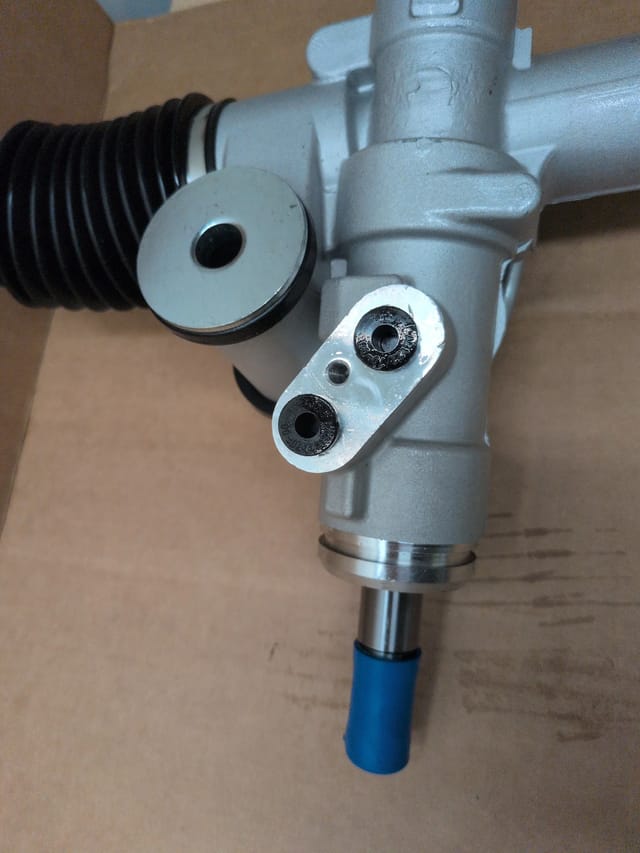

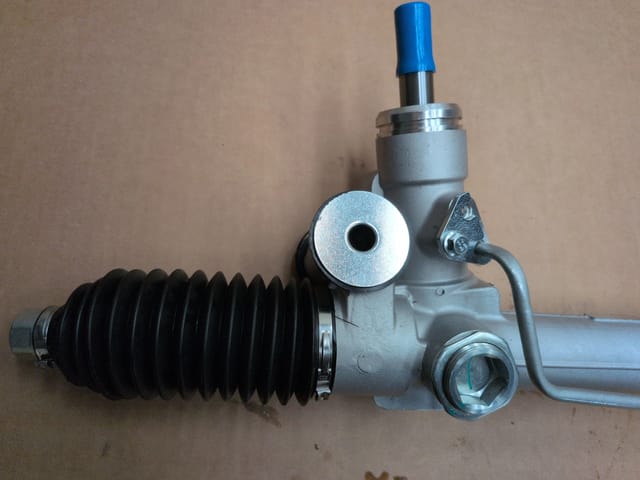

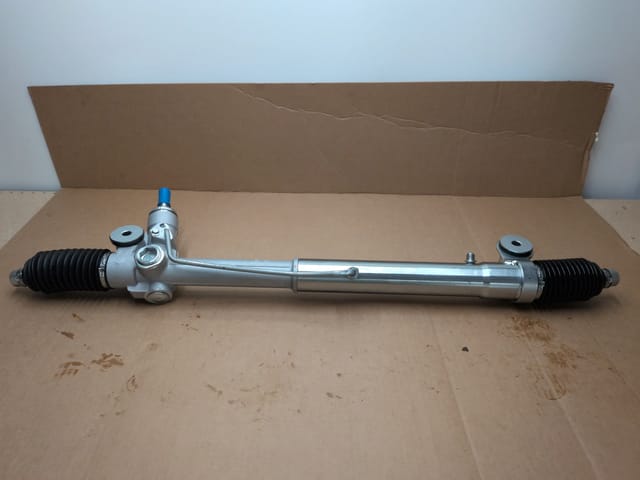

Hydraulic power steering rack and pinion assembly with inner tie rods and dust boots, for the 2002-2009 Chevrolet Trailblazer and GMC Envoy. The housing has some oily residue from factory test fluid, heaviest around a line port that had lost its shipping plug; both boots are dry inside and both ports are plugged again. Also for the Trailblazer EXT and Envoy XL (2002-2006), Envoy XUV (2004-2005) and Buick Rainier (2004-2007), 4.2L inline-6 and 5.3L V8. Fitment for the Trailblazer SS is not confirmed. Replaces 22-1014, 26100285, 26100288, 19330446 and 88962736. Compare the number on your old rack before ordering. PHOBOOS part number PBPSR067. Rack length 39 in. Maker's spec: input shaft 0.79 in diameter, 3.5 turns lock to lock. Unused: no wrench or install marks on the mounting bushings, input shaft or tie rod sockets. Inner tie rods firm with no play. Each inner tie rod ends in a female-threaded socket for the outer tie rod end. Outer tie rod ends are not included. Includes the PHOBOOS user manual.
