GF2054 Blower Motor 1/2 HP 115V 48 Frame

Details

Brand

LEUNGOO

Part number

GF2054

Condition

New, open box

Item number

1734

Description

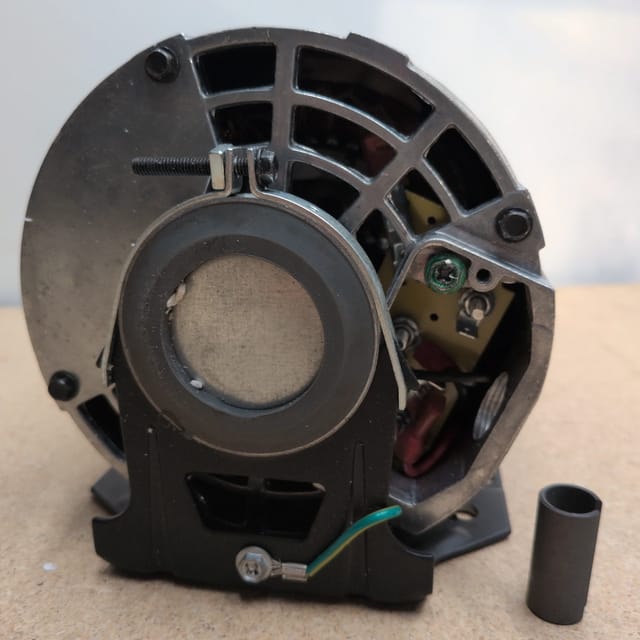

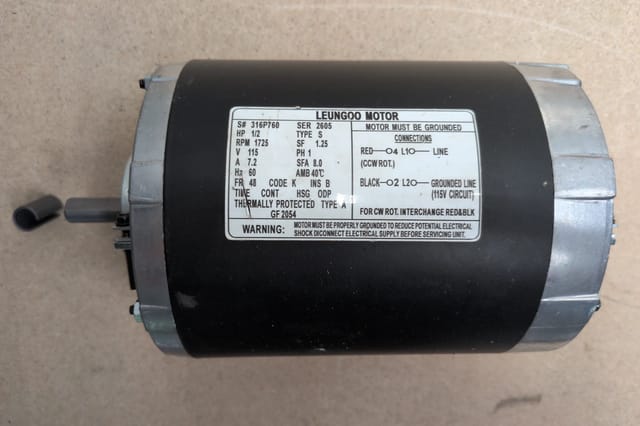

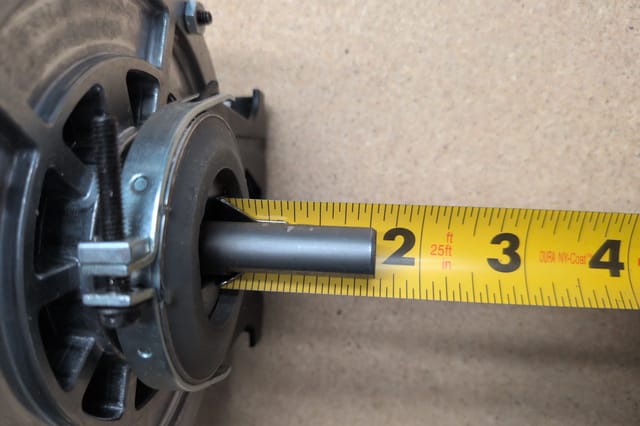

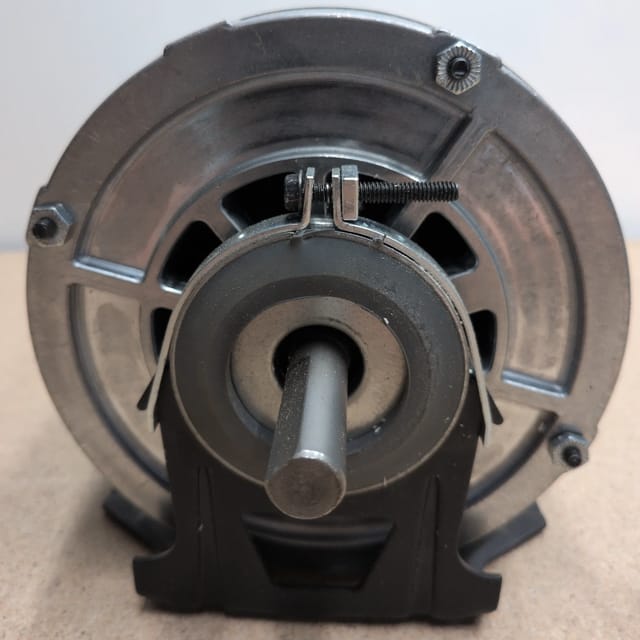

LEUNGOO GF2054 belt-drive blower motor: 1/2 HP, 115V, 1725 RPM, 60 Hz, 7.2 A, 48 frame, 1.25 service factor. It wires up inside an open recess in the back end bell, where the motor's own leads end in crimped terminals on screw posts. There is no power cord, no plug and no cover over that recess, and it has not been run under power. Open box with no signs of use: the shaft is bright and unmarked, with no pulley or set-screw scoring. The nameplate reads S# 316P760, SER 2605, Type S, Class B insulation, open drip-proof housing, continuous duty, 40C ambient, thermally protected with automatic reset. Rotation is reversible: red to L1 and black to L2 runs counter-clockwise, swap the two for clockwise. Shaft is 1/2 inch diameter with 1-1/2 inches sticking out past the end bell, the standard 48 frame dimensions. Body diameter is 5-5/8 inches. It sits in a resilient rubber-ring cradle mount on a slotted base, and the base sits flat with no rock. A plastic shipping sleeve for the shaft is included. Replaces A.O. Smith GF2054, Packard 45012, Emerson 8200, GE BF-4708, Universal 811, Baldor RSP3451A and Dayton 4UE85.
