Can-Am Maverick X3 / X3 Max 2017-2023 Outer Clutch CVT Belt Cover B0901-01501BK 420212508

Details

Brand

KEMIMOTO

Part number

B0901-01501BK

Condition

New, open box

Item number

1630

Description

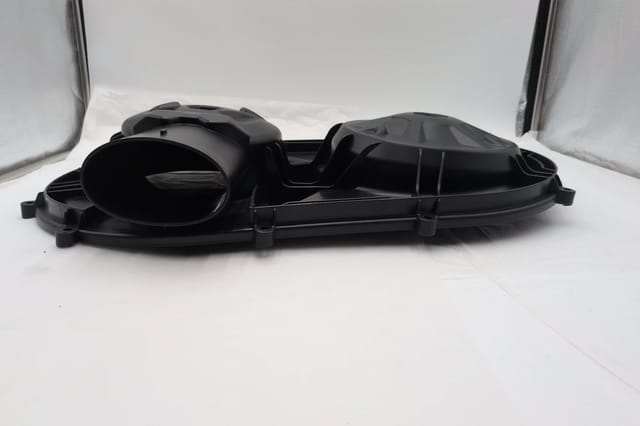

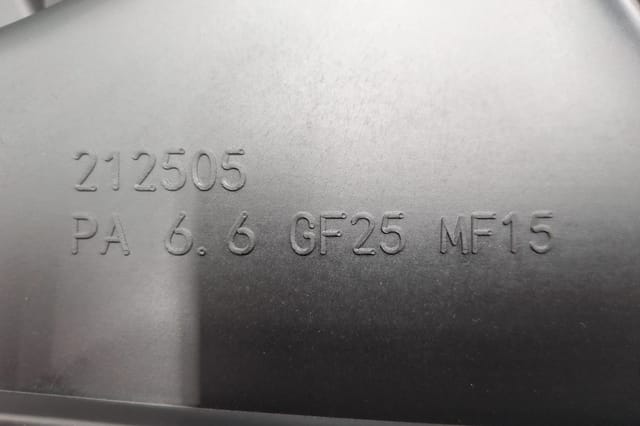

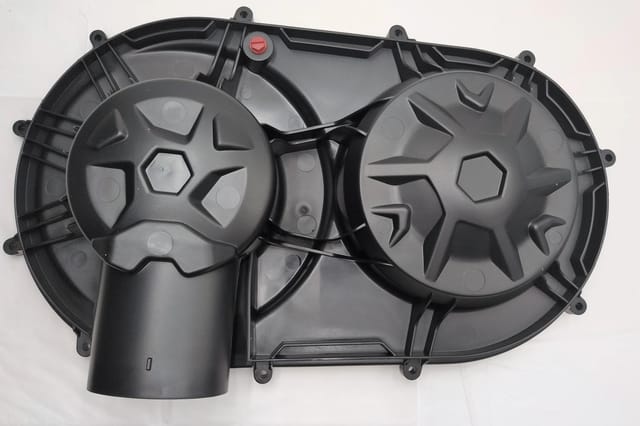

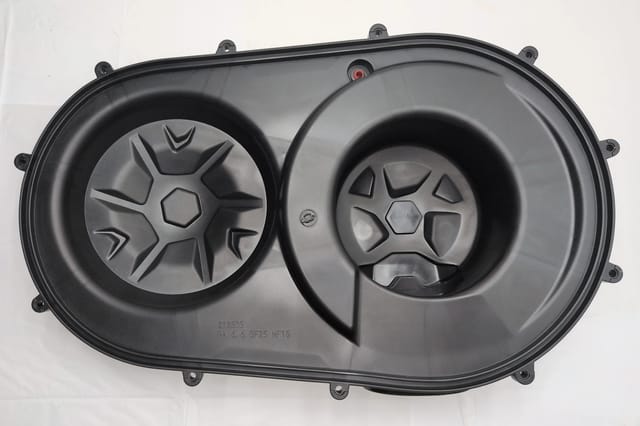

Sold as the cover only - no mounting hardware and no gasket are included. That is normal for this part: it bolts on using the machine's own fasteners. KEMIMOTO outer clutch cover (CVT belt cover) for the Can-Am Maverick X3 and X3 Max, 2017-2023. Part number B0901-01501BK, replaces OEM 420212508. Condition: new, open box. The retail carton was opened and the cover taken out for photos, but the part itself is unused - no cracks, no stress-whitening, no belt dust on the inner face, and every mounting ear around the rim present and unbroken. The vented plug is fitted. Moulded glass- and mineral-filled nylon, marked 212505 and PA 6.6 GF25 MF15 on the inner face (a moulding mark, not the part number). Shaped for the clutch air outlet duct. The raised bead running around the rim is hard moulded plastic, not a soft rubber seal. The outer clutch cover closes off the CVT belt housing, keeping dirt, water and debris away from the primary and secondary clutches while the duct feeds cooling air through the belt case.
