International Navistar DT466 7.6L Heavy Duty Water Pump HD6301 685155C94

Details

Brand

World American

Part number

HD6301

UPC

698231448427

Condition

New, open box

Category

Automotive

Package size

16x12x10

Shipping weight

19 lb

Item number

1580

Description

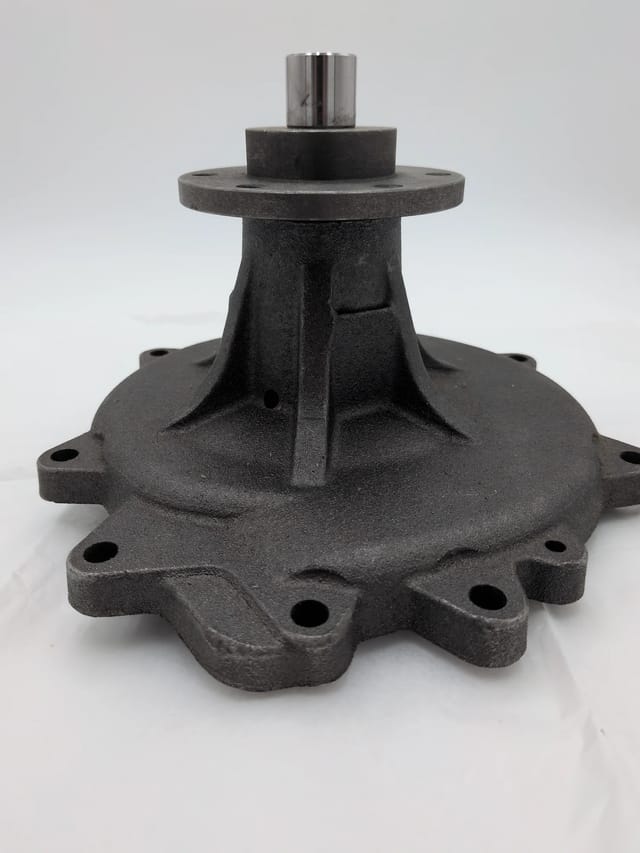

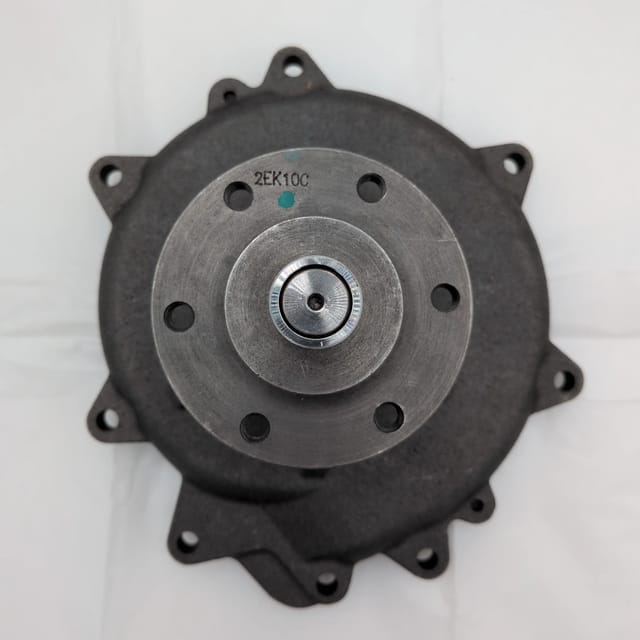

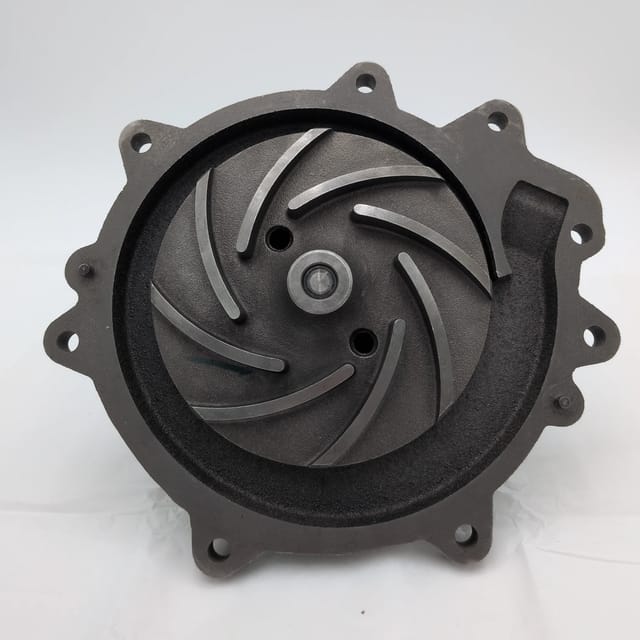

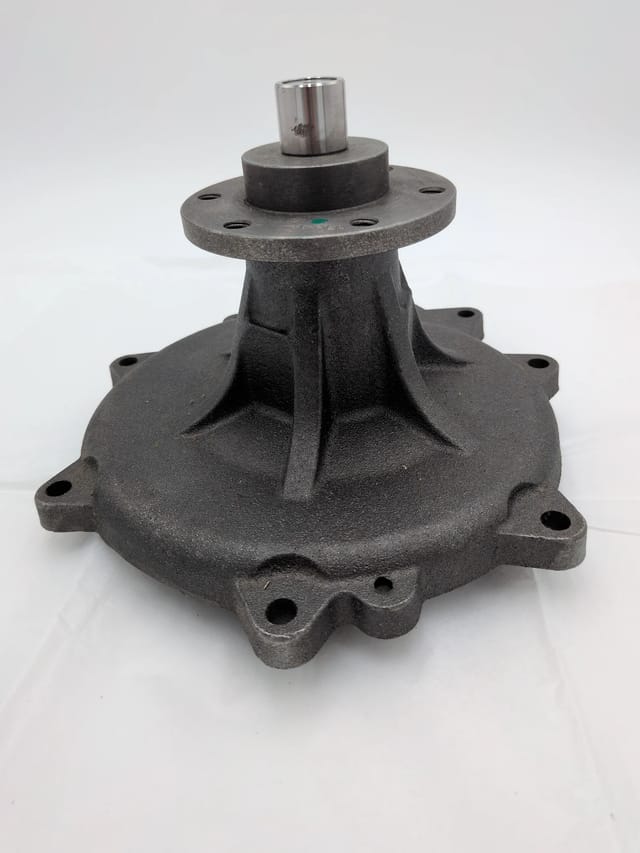

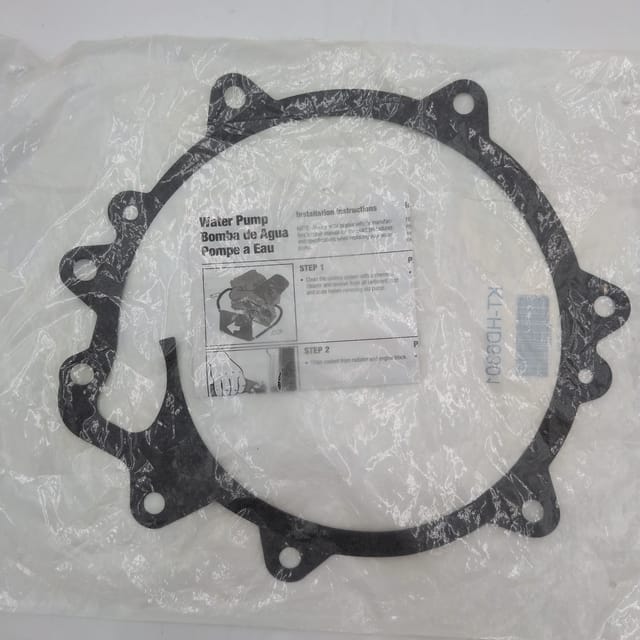

Heavy-duty replacement water pump for International / Navistar DT466 7.6L (466 cu in) I6 diesel engines. This is the HD6301 pump family. It cross-references OE numbers 685155C91, 685155C92, 685155C94, 685155C95 and 735327C91, and aftermarket numbers US3710, AW3710, 44058HD and DWP-HD6301. Fits International Harvester 3800, 4300, 4400, 4700, 4800 and 4900 chassis built with the 7.6L 466 cu in DT466 diesel. The same chassis were also built with the 7.3L 444, 5.9L 360 and other engines - this pump does not fit those, so check the engine before buying. Cast iron housing with a machined mounting face, a cast curved-vane impeller and a six-bolt drive flange. The mating gasket is included, still sealed in its bag with the installation instructions. No retail carton. Unused: no coolant staining at the weep hole, no gasket residue on the mounting face, and no wear on the machined surfaces.
